Special Tool(S): Draining

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.
NOTE:
  • Make sure that the vehicle is parked on level ground.
  • Clean the components general area prior to dismantling.
    • Start the engine and allow to run for 10 minutes, stop the engine.
  2. CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.
    G11284811
  3. Refer to: Engine Cover - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133
  4. G11284812
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
  5. G11284835

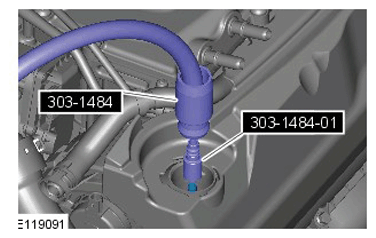

    • Using the oil vacuum pump drain the oil out through the oil extraction tube.

      Special Tool(s):  303-1484, 303-1484-01

    • Remove the oil vacuum pump.
  7. G11284813
  8. NOTE: Discard the O-ring seals.
    G11284814

    FILLING

  9. NOTE: Install new O-ring seals.
    G11284817

    Lubricate the oil filter element O-ring seal with clean engine oil.

  10. CAUTION: Tighten the component finger tight first.
    G11284818
    • Torque Specification: 25 Nm
  11. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps  7- 11), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles without supercharger:

      Refer to: Specifications

    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: Specifications

    • Clean any residual engine oil from the oil filler cap area.
  12. G11284819
  13. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps  7- 11 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  15. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    • Turn the ignition on.
  16. G11507812
    • Scroll through the trip menu to access the engine oil level display.
  17. G11507813
    G11507814
    • Press the cruise control cancel button twice within 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  6), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  19. NOTE: If instructed to follow Steps  7- 11 in a previous step, return to Step  6 and continue the procedure.

    Turn the ignition off.

    • Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  21. NOTE: The following steps are to update the average oil level value.
    G11507813
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
  23. Turn the ignition off.
  24. Turn the ignition on.
  25. G11507814
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
  26. Refer to: Engine Cover - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133
