Special Tool(S): Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION:

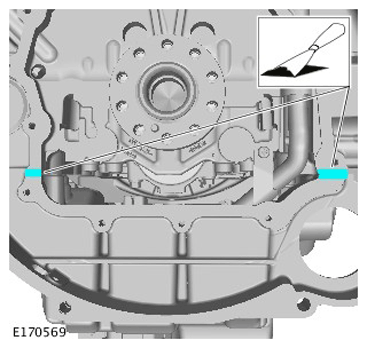

- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
-
CAUTION: Make sure that the Land Rover approved sealant, covers the mating faces of the cylinder block and the oil pan.

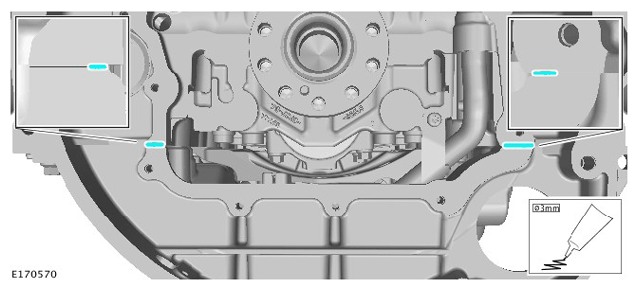

Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and install the engine rear oil seal plate within 7 minutes.
-

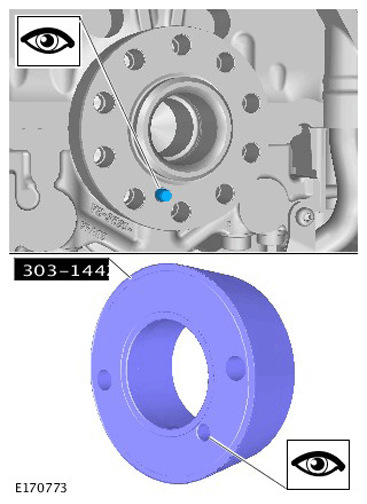

CAUTION: Make sure that the special tool is correctly located.

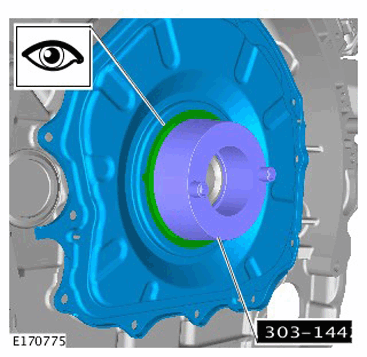

Special Tool(s): 303-1442
-
NOTE: Install the bolts finger tight.

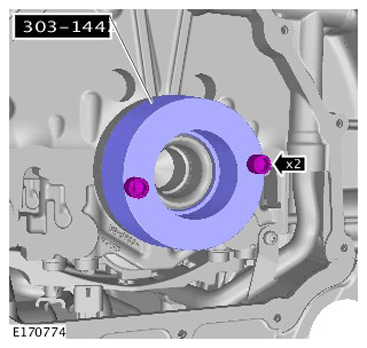

Install the special tool.
Special Tool(s): 303-1442
-

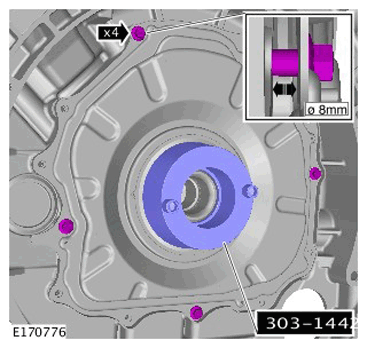

CAUTION: Do not fully install the component. Maintain a clearance of 8mm, between the rear oil seal plate and the cylinder block, as smearing of the sealant may occur.
Special Tool(s): 303-1442

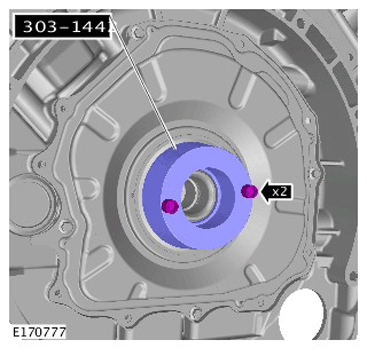

Install the bolts and maintain the clearance of 8mm.
Special Tool(s): 303-1442
Remove the special tool.
Special Tool(s): 303-1442
-

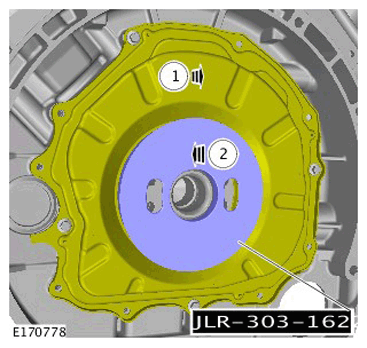

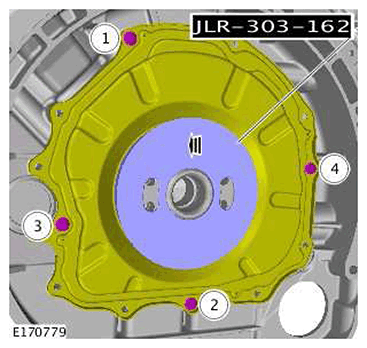

CAUTION: Apply pressure to the rear oil seal plate in the sequence shown, when installing the special tool.
Special Tool(s): JLR-303-1622
-

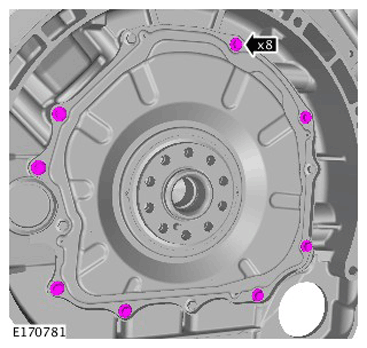

NOTE: Tighten the bolts in the indicated sequence.
Using the special tool, install the component.
Special Tool(s): JLR-303-1622
Torque Specification: 11 Nm
Remove the special tool.
Special Tool(s): JLR-303-1622
Torque Specification: 11 Nm
-
Refer to: Flexplate
