Special Tool(S): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Remove the cooling fan.

    Refer to: Cooling Fan Motor and Shroud - V8 S/C 5.0L Petrol

  4. Remove the starter motor.

    Refer to: Starter Motor

  5. G11285711
  6. G11285750

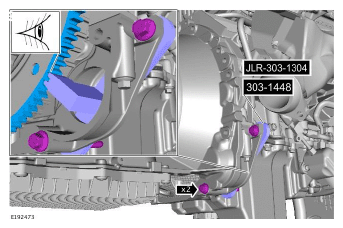

  7. G11507886
    • Install the special tool.
    • Vehicles without Auto stop/start system.

      Special Tool(s):  303-1448

    • Vehicles with Auto stop/start system.

      Special Tool(s):  JLR-303-1304

  8. CAUTION: Before removing the crankshaft pulley bolt, note the numbers on the bolt head. If the bolt head shows 10.9, the bolt must be removed counter clockwise. If the bolt head shows 12.9, the bolt must be removed clockwise. Failure to follow this instruction may result in damage to the crankshaft.

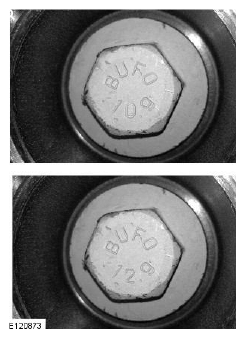

    G11507887

    Note the markings on the crankshaft pulley bolt.

  9. G11284916

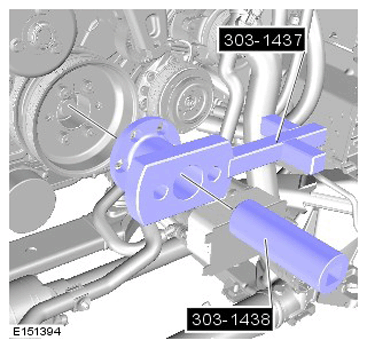

  10. G11284917
    • Install the special tools.
    • Special Tool(s):  303-1437
    • Special Tool(s):  303-1438
  11. NOTE: The illustration shows the tool positioning for LH threaded crankshaft damper bolts, RH threaded crankshaft bolts will require the tool position to be the opposite direction.

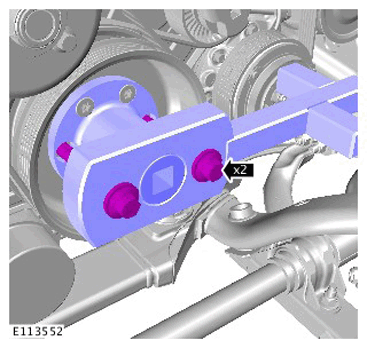

    G11284918

    Torque Specification: 25 Nm

  12. G11285712
    • Remove the special tool.
    • Vehicles without Auto stop/start system.

      Special Tool(s):  303-1448

    • Vehicles with Auto stop/start system.

      Special Tool(s):  JLR-303-1304

  13. NOTE: The illustration shows the tool positioning for LH threaded crankshaft damper bolts, RH threaded crankshaft bolts will require the tool position to be the opposite direction.

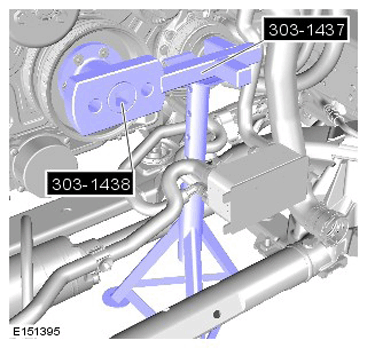

    G11284919

    Using a suitable stand, support the special tool.

  14. CAUTION: Discard the bolt.
    NOTE:
    • The illustration shows the tool positioning for LH threaded crankshaft damper bolts, RH threaded crankshaft bolts will require the tool position to be the opposite direction.
    • The crankshaft pulley bolt will be very tight.

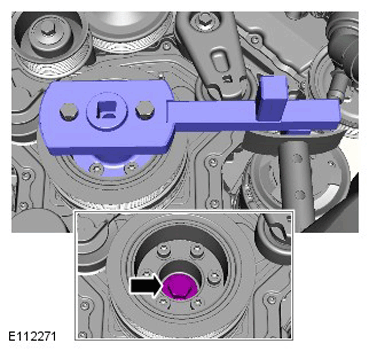

    G11285719

    Remove the crankshaft damper bolt, make sure the bolt thread direction has been noted as described in step  8.

  15. G11285712
    • Install the special tool.
    • Vehicles without Auto stop/start system.

      Special Tool(s):  303-1448

    • Vehicles with Auto stop/start system.

      Special Tool(s):  JLR-303-1304

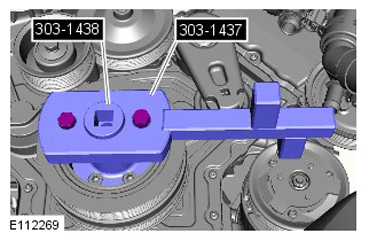

  16. G11285721

    Remove the special tool.

  17. NOTE: Discard the bolt after removal.
    G11284923

    Remove the crankshaft damper bolt.

  18. G11284924
  19. G11284925
    • Install the special tool.
    • Special Tool(s): 303-1440

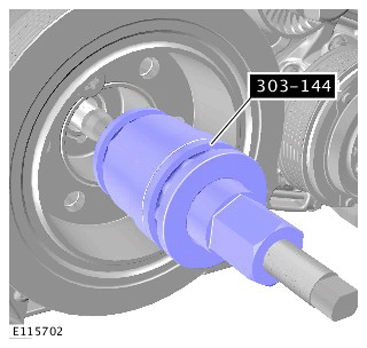

  20. G11284926
    • Install the special tool.
    • Special Tool(s): 303-1441

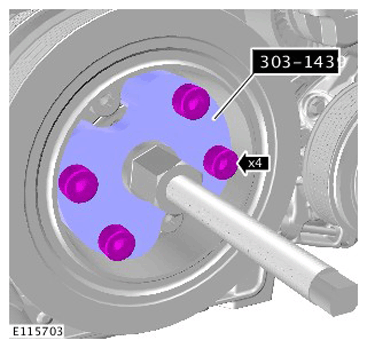

  21. G11284927
    • Install the special tool.
    • Special Tool(s): 303-1439

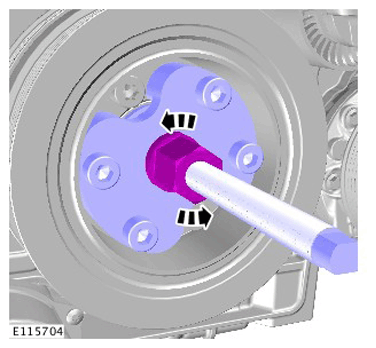

  22. G11284928
  23. CAUTION: Discard the friction washer after removing the crankshaft pulley.
    NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

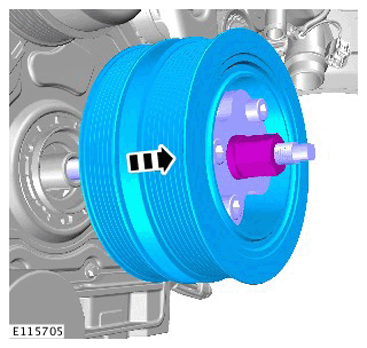

    G11284929

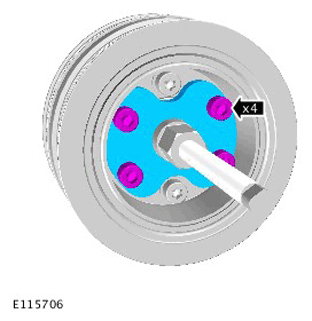

  24. G11284930

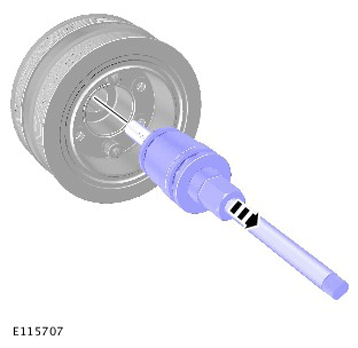

  25. G11284931
