Component Location

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

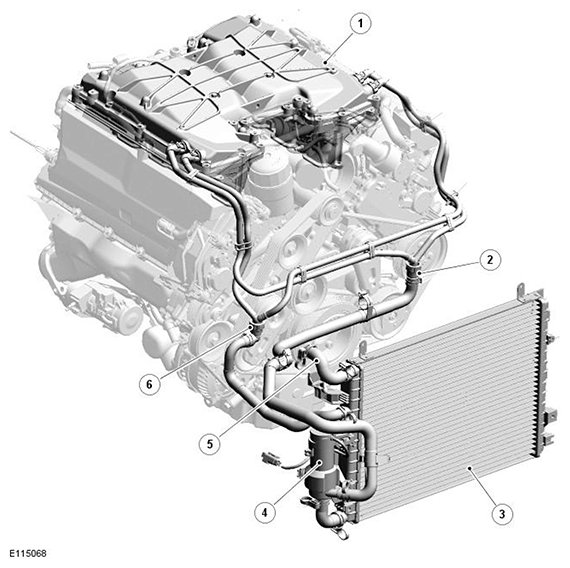

G11541456
ITEM DESCRIPTION
1 Intake manifold assemblies
2 Supply hoses to charge air coolers
3 Charge air radiator
4 Charge air coolant pump
5 Engine cooling system connecting hose
6 Return hoses from charge air coolers
