Charge Air Radiator
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

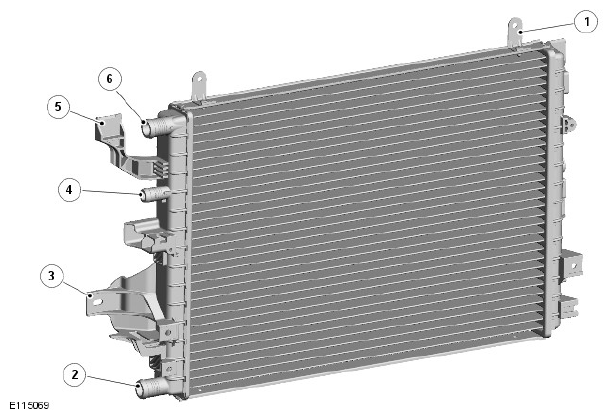

| ITEM | DESCRIPTION |
|---|---|
| 1 | Pipe clip bracket (2 off) |
| 2 | Coolant outlet connection |
| 3 | Lower attachment bracket (2 off) |
| 4 | Coolant inlet connection |
| 5 | Upper attachment bracket (2 off) |
| 6 | Expansion hose connection (with engine cooling system) |
The charge air radiator is a cross flow type with an aluminum core and plastic end tanks. The charge air radiator is installed in the cooling module, in front of the A/C (air conditioning) condenser. Brackets on the end tanks attach the charge air radiator to the front of the engine cooling system radiator.
The RH end tank incorporates the coolant inlet and outlet connections, and a connection for the hose to the engine cooling system. Hoses connect the inlet of the charge air radiator to the charge air coolers, and the outlet to the charge air coolant pump.
