Charge Air Coolant Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

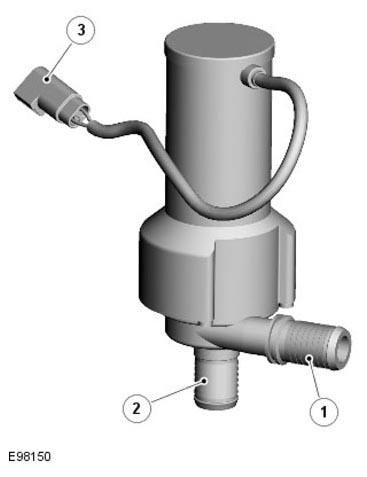

G11301433
ITEM DESCRIPTION
1 Coolant outlet connection
2 Coolant inlet connection
3 Electrical connector

The charge air coolant pump is an electric pump attached to the RH (right-hand) side of the charge air radiator. Hoses connect the inlet of the charge air coolant pump to the charge air radiator, and the outlet to the charge air coolers. An electrical connector provides the interface between the motor of the charge air coolant pump and the vehicle wiring.
