Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

  2. Refer to removal And Installation
  3. G11541355
  4. G11541383

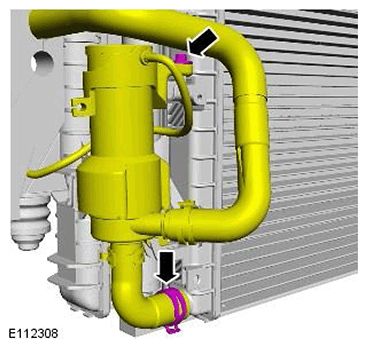

  5. G11541412

    Torque Specification: 7 Nm

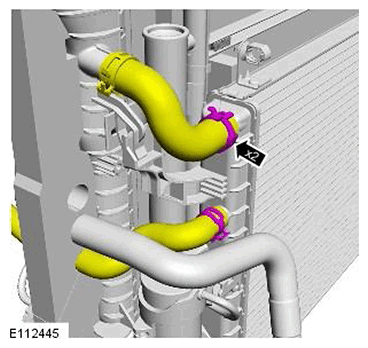

  6. G11541467

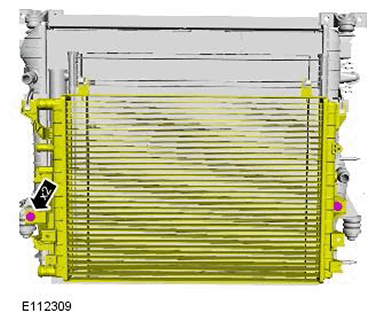

  7. G11541468

Torque Specification: 7 Nm
