Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    Removal steps in this procedure may contain installation details.

    Some illustrations may show the engine removed for clarity.

    Some variation in the illustrations may occur, but the essential information is always correct.

  1. Refer to: Flexplate  .
  2. See figure
    GJ0012811

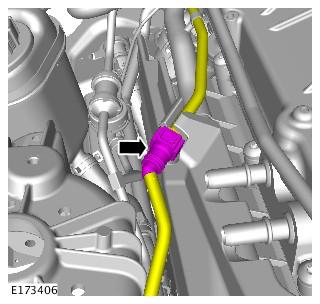

    3. NOTE: If equipped.
  3. See figure
    G00559412
