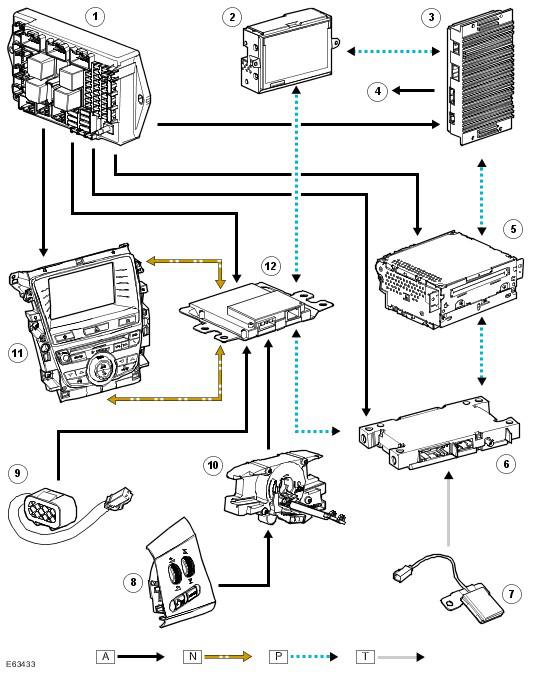

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Auxiliary junction box |
| 2 | Touch Screen Display (TSD) |
| 3 | Audio amplifier |
| 4 | Speakers |
| 5 | Integrated audio module |
| 6 | Telephone control module |
| 7 | Bluetooth antenna |
| 8 | Steering wheel controls |
| 9 | Microphone |
| 10 | Clock spring |
| 11 | Integrated control panel |
| 12 | Information and entertainment module |
NOTE:
A=Hardwired; N=Medium speed CAN; P=MOST; T=Coaxial
