Brake Fluid Reservoir: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
- Remove the air intake cover.
- Remove the 4 clips.
- Siphon the fluid from the brake master cylinder.
- Position an absorbent cloth to collect fluid spillage.
- Disconnect the low brake fluid warning indicator switch electrical connector.

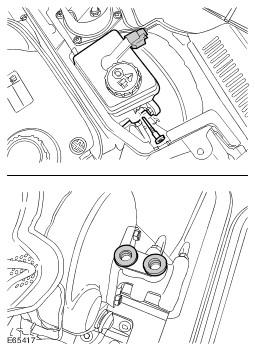

- Remove the brake fluid reservoir.
- Remove the Torx bolt.
- Remove and discard 2 brake fluid reservoir seals.
NOTE:
LH illustration shown, RH is similar.
CAUTION:
Always plug any open connections to prevent contamination.
NOTE:
Some fluid spillage is inevitable during this operation.
