Parking Brake Caliper - XK-RS Gt: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles With: Carbon Ceramic Brakes - Parking Brake Caliper XK-RS GT

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

CAUTION: The parking brake caliper retaining bolts are installed in two left hand thread inserts on the mounting bracket which may loosen and unscrew if the retaining bolts are removed and cause damage to the brake disc, the inserts and the mounting bracket. Therefore it is essential that the following procedure is adhered too.

CAUTION: Take care not to contaminate the brake pad friction materials or the brake discs.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

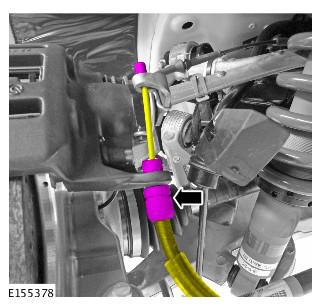

Refer to PARKING BRAKE PADS - XK-RS GT - Removal and Installation.
Courtesy of JAGUAR CARS, INC.

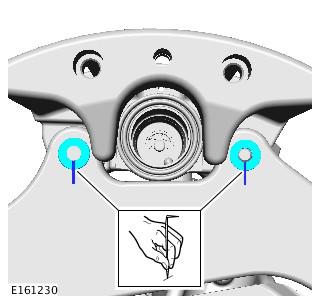

Accurately scribe a lines to mark the caliper retaining bolt inserts to the caliper mounting bracket.

Courtesy of JAGUAR CARS, INC.

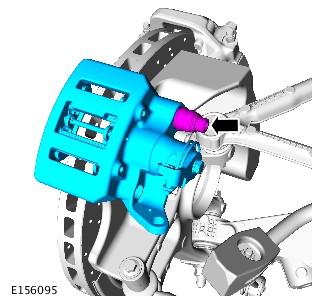

Torque: 40 Nm

Courtesy of JAGUAR CARS, INC.

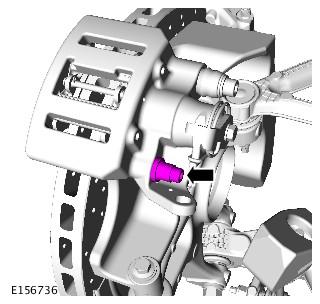

Torque: 70 Nm

Courtesy of JAGUAR CARS, INC.

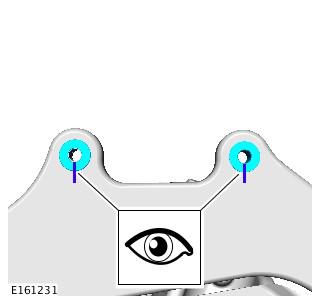

Check the alignment to see if the inserts have loosened.

Courtesy of JAGUAR CARS, INC.

NOTE: Carry out the next step only if the inserts have loosened.

CAUTION: The inserts are left hand thread.

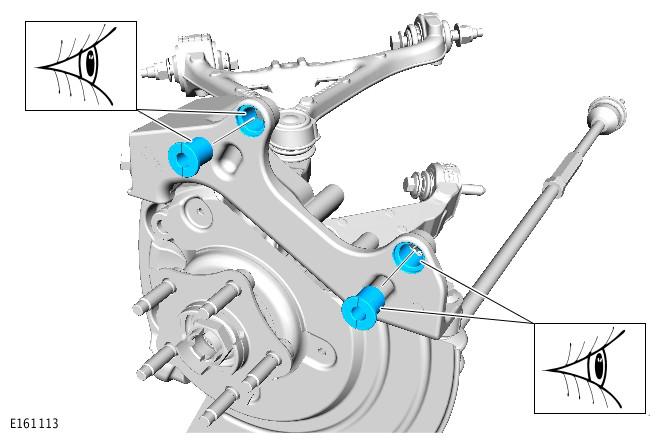

Remove the inserts and check for damage to the threads on the inserts and the mounting bracket and replace if necessary.

Courtesy of JAGUAR CARS, INC.
