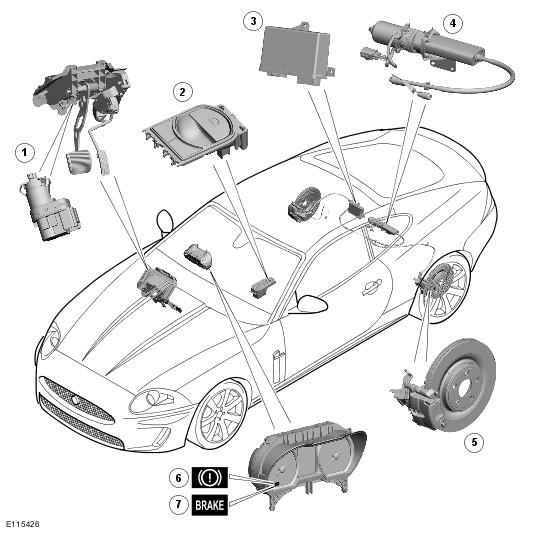

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Stoplamp switch |
| 2 |
Parking brake switch |
| 3 |
Parking brake control module |
| 4 |
Parking brake actuator |
| 5 |
Caliper and disc assemblies |
| 6 |
Brake warning indicator - All except NAS (North American specification) vehicles |
| 7 |
Brake warning indicator - NAS vehicles |
