Fuel Tank Filler Pipe: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions information.
NOTE: Removal steps in this procedure may contain installation details.
  1. Open the fuel filler door and remove the cap.
  2. Refer to Fuel Tank Draining information.
  3. Remove the right-hand wheel and tire. Refer to Wheel and Tire information.

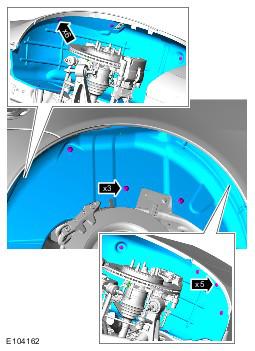

  4. Remove the right-hand wheel arch liner.
    GJ0025330
  5. Remove the right-hand halfshaft. Refer to Rear Halfshaft information.

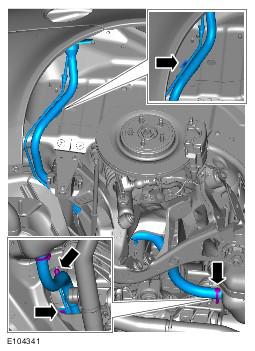

    6. NOTE: Non federal market vehicles only.
  6. Torque: 7 Nm
    GJ0025495
    7. NOTE: Federal market vehicles only.
  7. Torque: 7 Nm
    GJ0025496
