Fuel Pump And Sender Unit: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions information.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to Fuel Tank - 5.0L .
  4. Torque: 10 Nm
    GJ0025482

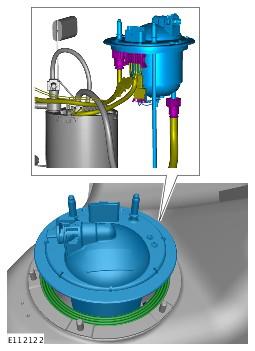

  5. See figure
    GJ0025483
  6. See figure
    GJ0025484
  7. See figure
    GJ0025485
    8. CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.
  8. See figure
    GJ0025486
