Remote Pump Housing
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

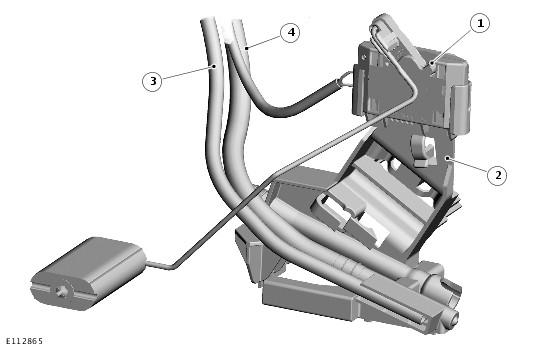

| Item Number | Description |
|---|---|
| 1 | LH fuel level sensor |
| 2 | Remote pump housing |
| 3 | Pipe (from LH drain connector on mounting flange) |
| 4 | Pipe (to jet pump on pump module) |
The remote pump housing is where fuel from the left-hand (LH) side of the fuel tank is drawn from to fill the swirl pot in the pump module. The remote pump housing is installed on the front face of the left-hand (LH) rear baffle. Clips integrated into the remote pump housing hold the left-hand (LH) fuel level sensor and the pipe from the left-hand (LH) drain connector on the mounting flange.
