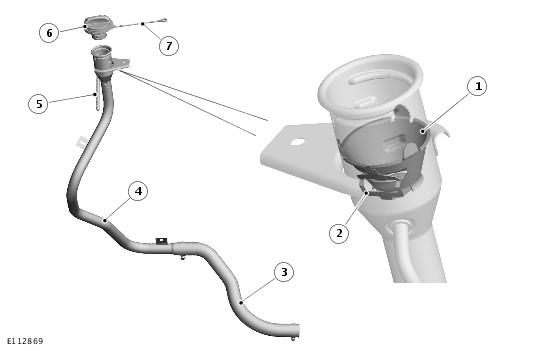

Fuel Filler Pipe
| Item Number | Description |
|---|---|
| 1 | Baffle |
| 2 | Flapper |
| 3 | Hose |
| 4 | Pipe |
| 5 | Vent pipe connector |
| 6 | Filler cap |
| 7 | Tether |
The top of the fuel filler pipe is located above the right rear wheel. The filler cap is a conventional screw in type which is secured to the vehicle with a tether. The filler cap is covered by a plastic door, which has a locking motor controlled by the active anti-theft system. Refer to Anti-Theft - Active or Anti-Theft - Active information.
The fuel filler pipe is a stainless steel fabrication which is secured to the vehicle body by two brackets and a flange. A stub pipe is incorporated into the top of the fuel filler pipe for connection of a vent pipe from the fuel tank. A baffle and flapper are installed in the top of the fuel filler pipe. The baffle restricts the diameter of the fuel nozzle that can be used to fill the fuel tank.
The bottom of the fuel filler pipe locates in a flexible hose attached to the fuel filler stub pipe in the rear right corner of the fuel tank. Both ends of the hose are secured with worm drive clamps.
