Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|

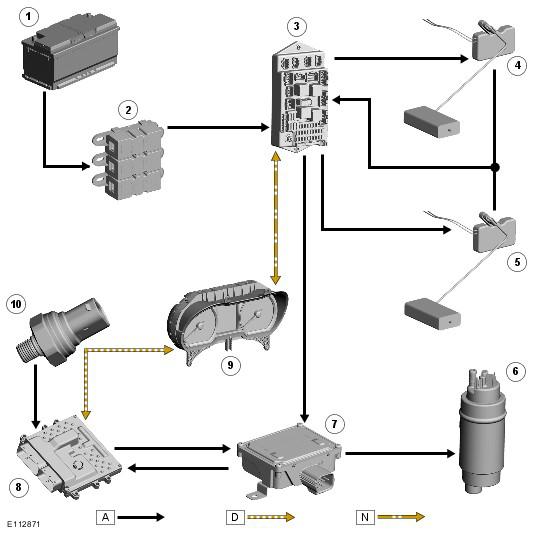

| Item Number |
Description |
| 1 |
Battery |
| 2 |
BJB (battery junction box) (175 A megafuse) |
| 3 |
AJB (auxiliary junction box) |
| 4 |
RH fuel level sensor |
| 5 |
LH fuel level sensor |
| 6 |
Fuel pump |
| 7 |
FPDM |
| 8 |
ECM |
| 9 |
Instrument cluster |
| 10 |
Fuel LP sensor |
