Component Location

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

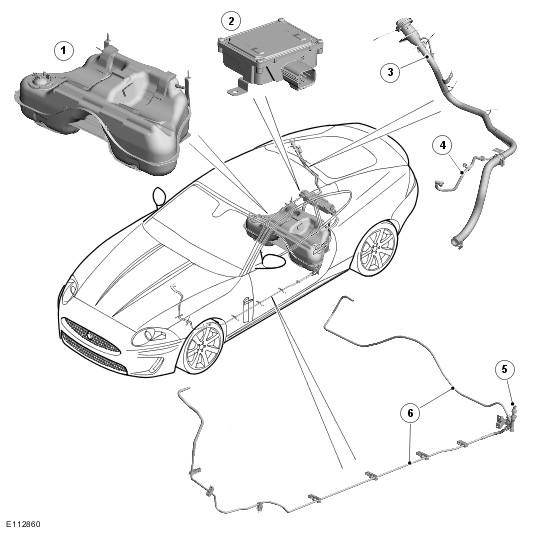

GJ0025628Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Fuel tank
2 FPDM (fuel pump driver module)
3 Fuel filler pipe
4 Vent pipe
5 Fuel LP (low pressure) sensor
6 Fuel delivery line
