Radiator - V8 5.0L Petrol: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to Battery Disconnect and Connect information.
- Raise and support the vehicle.
- Refer to Cooling System Draining and Vacuum Filling information.
- Refer to Left Air Cleaner Outlet Intermediate Pipe information.
- Refer to Right Air Cleaner Outlet Intermediate Pipe information.
- Refer to Radiator Splash Shield information.
- Torque: 7 Nm
- See figure
- See figure
- Torque: 25 Nm
- Torque: 23 Nm
- Torque: 30 Nm
- See figure
- See figure
- Torque: 5 Nm
- See figure
- Torque: 7 Nm
- See figure
- See figure

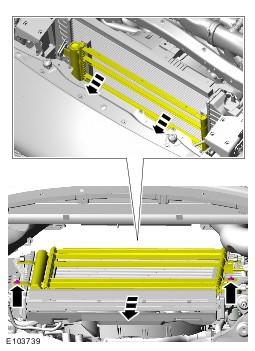

- See figure
- Torque: 7 Nm
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
CAUTION:
Make sure to protect the paintwork.
NOTE:
Do not disassemble further if the component is removed for access only.
