Cooling Module - V8 S/C 5.0L Petrol: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to Battery Disconnect and Connect information.
- Raise and support the vehicle.
- Evacuate the air conditioning (A/C) system. Refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging information.
- Refer to Cooling System Draining and Vacuum Filling information.
- Refer to Hood information.
- Refer to Left Air Cleaner Outlet Pipe information.
- Refer to Right Air Cleaner Outlet Pipe information.
- Refer to Radiator Splash Shield information.
- Refer to Auxiliary Radiator .

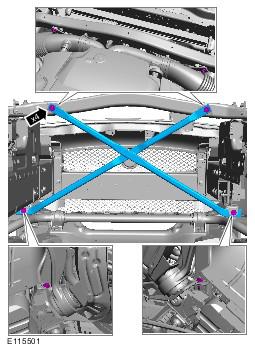

- See figure
- Torque: 25 Nm
- Torque: 23 Nm
- Torque: 30 Nm
- Torque: 30 Nm
- See figure
- See figure
- See figure
- See figure
- See figure
- See figure
- See figure
- See figure
- Torque: 8 Nm
- See figure
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
CAUTION:
Make sure to protect the paintwork.
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
