Auxiliary Radiator: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to Cooling System Draining and Vacuum Filling - Vehicles With: Supercharger  information.
  2. Refer to Radiator Splash Shield information.

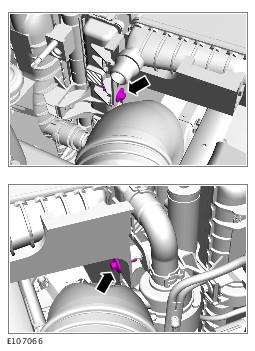

  3. Torque: 7 Nm
    GJ0025487
  4. See figure
    GJ0025488
  5. Torque: 7 Nm
    GJ0025489
