Cooling System Draining, Filling And Bleeding V8 S/C 5.0L Petrol: Filling

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Torque: 2 Nm

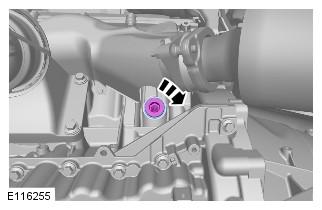

    G00532070
  2. Torque: 50 Nm
    G00529793
  3. Refer to Air Deflector information.
  4. Lower the vehicle.
  5. Refer to Cowl Vent Screen information.
  6. See figure

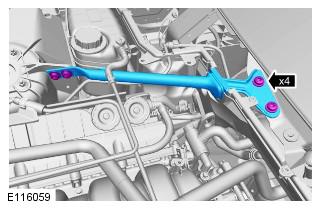

    G00532072
  7. See figure
    GJ0025276
    • Raise the coolant expansion tank 50mm from its original position.

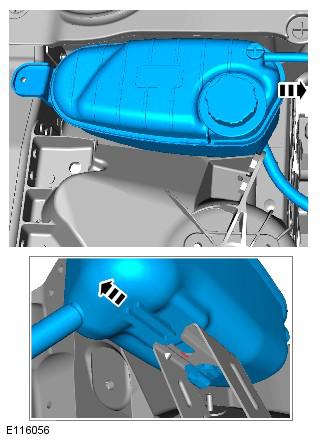

    G00532073
  9. See figure

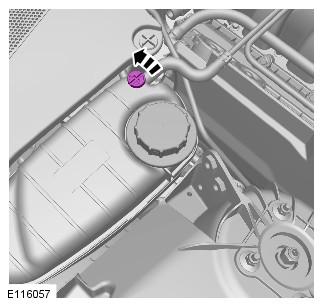

    G00532074
    10. CAUTION: Make sure that the clip from the connector remains with the connector.
  10. See figure

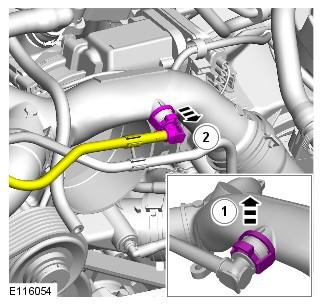

    G00532075
    11. CAUTION: Be prepared to collect escaping fluids.
  11. Fill the coolant expansion tank to the rim and continue until coolant is visible from the outlet.
  12. Once coolant is visible from the outlet, connect the pipe.

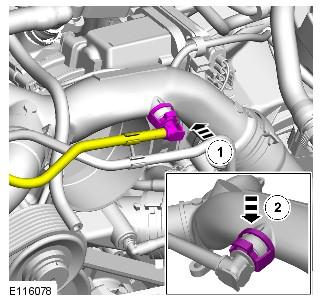

    G00532076
    13. NOTE: This step may take approximately 10 minutes as the coolant level will drop slowly.
  13. Continue to fill the coolant expansion tank to the rim until the coolant level stops dropping.
  14. See figure

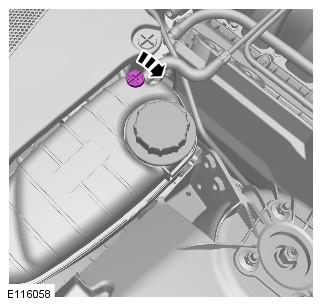

    G00532077
  15. See figure
    G00532071
  16. Install the coolant expansion tank.
  17. Torque: 23 Nm
    GJ0025274
  18. Refer to Cowl Vent Screen information.
  19. See figure
    G00532068
    20. WARNING: Be prepared to collect escaping fluid.
  20. Check and top-up the coolant if required.
  21. Set the heater controls to maximum.
  22. Start the engine.
  23. Continue to top-up with coolant with the engine at idle.
  24. Increase the engine speed to 2000 rpm for 2 minutes.
    • Continue to top-up with coolant with engine idling until hot air is emitted from face vents.
    • When hot air is emitted from the vents, switch the heater off. Go to Step 27.
  26. If no hot air is emitted, turn the engine off for 10 seconds and the start the engine and return to Step 24.
  27. Install the coolant expansion tank cap while the engine is at idle.
    G00532071
  28. Switch the heater off.
  29. Raise the engine speed to 2000 rpm for eight minutes.
    30. CAUTION: Switch off the engine and allow the coolant temperature to go cold.
  30. Switch the engine off.
  31. Visually check the engine and cooling system for signs of coolant leakage.
    32. WARNING: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
    CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
    CAUTION: Make sure the coolant level remains above the "COLD FILL RANGE" lower level mark.
    NOTE: When the cooling system is warm, the coolant will be approximately 10mm above the upper level mark on the expansion tank with the cap removed.
  32. Check and top-up the coolant if required.
