Cooling System Draining, Filling And Bleeding V8 S/C 5.0L Petrol: Draining

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
    WARNING: Be prepared to collect escaping fluid.
    CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
  1. See figure
    G00532068
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to Air Deflector information.
    4. CAUTION: Be prepared to collect escaping fluids.
  4. See figure
    G00532069

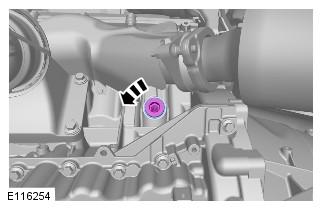

    5. CAUTION: Be prepared to collect escaping fluids.
  5. See figure
    G00529792
  6. Carry out the procedure up to step 1 in the filling section three times, filling the cooling system with clean water at the first two drains. At the third refill, use a suitable measuring tool to make sure that the cooling system maintains a 50% mix.
