Cooling System Draining And Vacuum Filling: Draining

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
    WARNING: Be prepared to collect escaping fluid.
    CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure

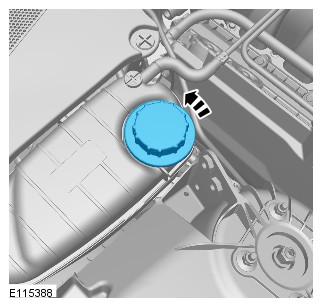

  1. See figure
    G00532068
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
    3. CAUTION: Be prepared to collect escaping fluids.

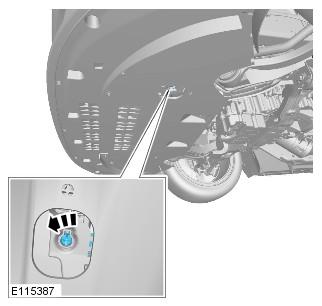

  3. See figure
    G00532069
