Engine Cooling: Radiator

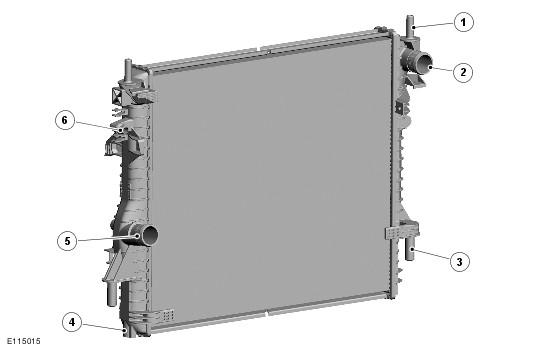

Radiator (Naturally Aspirated Vehicles)
| Item Number | Description |
|---|---|
| 1 | Locating spigot (2 off) |
| 2 | Upper hose connection |
| 3 | Support (2 off) |
| 4 | Drain plug |
| 5 | Lower hose connection |
| 6 | Transmission fluid cooler inlet hose connection |

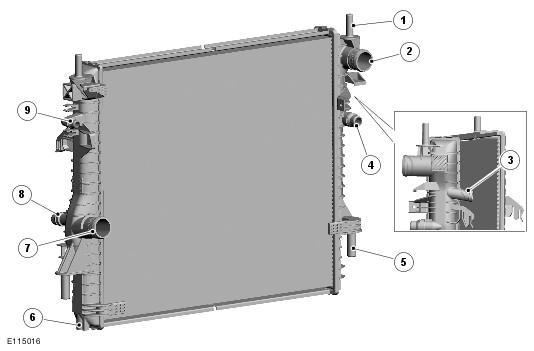

Radiator (Supercharger Vehicles)
| Item Number | Description |
|---|---|
| 1 | Locating spigot (2 off) |
| 2 | Upper hose connection |
| 3 | Supercharger cooling system connection |
| 4 | Auxiliary radiator inlet hose connection |
| 5 | Support (2 off) |
| 6 | Drain plug |
| 7 | Lower hose connection |
| 8 | Auxiliary radiator outlet hose connection |
| 9 | Transmission fluid cooler inlet hose connection |
The radiator is a cross flow type with an aluminum core and plastic end tanks. The radiator is part of the cooling module and is attached to the vehicle by locating spigots and supports integrated into the end tanks. The supports are installed in rubber bushes located in mounting brackets on the front subframe. The locating spigots are installed in rubber bushes located in mounting brackets on the front crossmember.
The two end tanks incorporate connections for the upper and lower hoses, the coolant supply hose of the transmission fluid cooler and, on supercharger (SC) vehicles, the supply and return hoses of the auxiliary radiator. A drain plug is installed in the bottom of the left-hand (LH) end tank.
