Outlet Tube And Heater Manifold
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

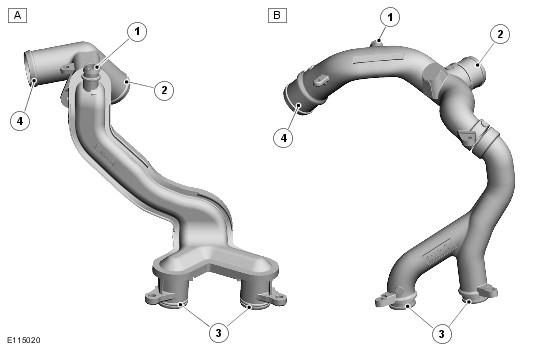

Outlet Tube
| Item Number | Description |
|---|---|
| A | Outlet tube on naturally aspirated vehicles |
| B | Outlet tube on supercharger vehicles |
| 1 | Bleed hose connection |
| 2 | Radiator upper hose connection |
| 3 | Cylinder block connections |
| 4 | Thermostat hose connection |

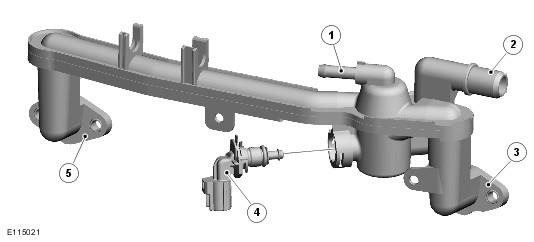

Heater Manifold
| Item Number | Description |
|---|---|
| 1 | Throttle body heater hose connection |
| 2 | Heater core supply hose connection |
| 3 | RH cylinder head connection |
| 4 | Engine coolant temperature sensor |
| 5 | LH cylinder head connection |
