Cooling Fan
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

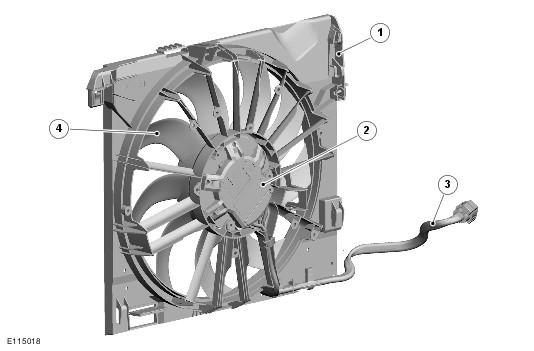

Cooling Fan (Naturally Aspirated Vehicles)
| Item Number | Description |
|---|---|
| 1 | Shroud |
| 2 | Motor and fan control module |
| 3 | Harness |
| 4 | Fan |

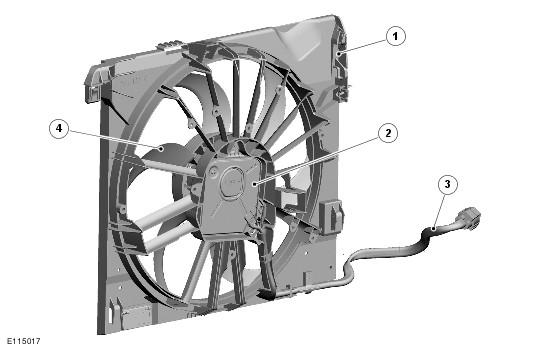

Cooling Fan (Supercharger Vehicles)
| Item Number | Description |
|---|---|
| 1 | Shroud |
| 2 | Motor and fan control module |
| 3 | Harness |
| 4 | Fan |
An electric, variable speed cooling fan is installed in a shroud attached to the rear of the radiator. The cooling fan is operated by a fan control module, integrated into the electric motor, under the control of the engine control module (ECM). An electrical connector at the right-hand (RH) side of the shroud provides the interface between the cooling fan harness and the vehicle wiring.
