Coolant Pump
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

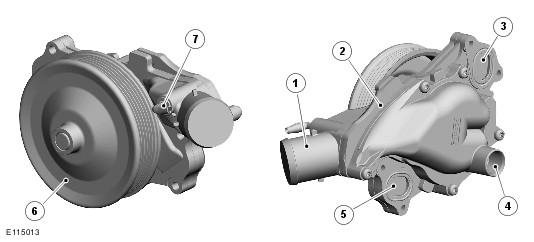

| Item Number | Description |
|---|---|
| 1 | Inlet connection |
| 2 | Pump body |
| 3 | Outlet flange to RH cylinder head |
| 4 | Outlet to engine oil cooler |
| 5 | Outlet flange to LH cylinder head |
| 6 | Pulley |
| 7 | Bleed pipe connection (containing check valve) |
The body of the coolant pump contains an impeller attached to a shaft supported in a bearing assembly. The impeller is driven by a pulley, pressed on to the front of the shaft, which is driven by the accessory drive belt. For additional information, refer to 303-05 Accessory Drive.
Two coolant outlet flanges attach the coolant pump to the front of the cylinder heads. A pipe connects a further coolant outlet to a pipe from the engine oil cooler. A bleed connector is installed in the front of the coolant pump, adjacent to the coolant inlet connection from the thermostat. A check valve is incorporated into the bleed connection.
