Component Location - Supercharger Vehicles
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

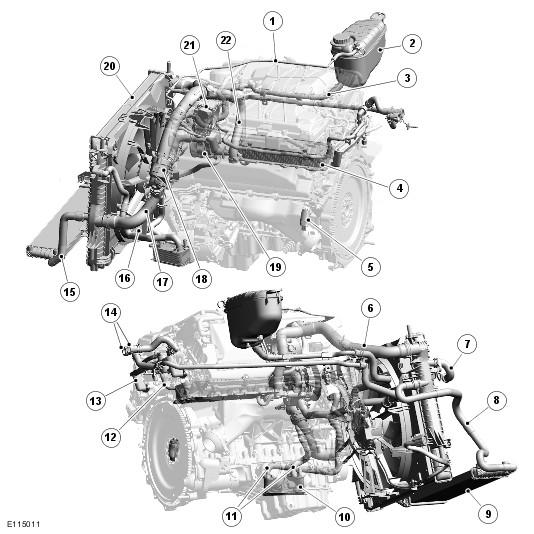

| Item Number | Description |
|---|---|
| 1 | Engine vent hose |
| 2 | Coolant expansion tank |
| 3 | Coolant supply/expansion hose |
| 4 | Engine oil cooler |
| 5 | Engine block heater (110 V version shown) or drain plug |
| 6 | Radiator upper hose |
| 7 | Supercharger cooling system connecting hose |
| 8 | Auxiliary radiator supply hose |
| 9 | Auxiliary radiator |
| 10 | Transmission fluid cooler |
| 11 | Transmission fluid cooler supply and return hoses |
| 12 | Throttle body heater hose |
| 13 | Heater manifold |
| 14 | Heater core supply and return hoses |
| 15 | Auxiliary radiator return hose |
| 16 | Cooling fan |
| 17 | Radiator lower hose |
| 18 | Thermostat |
| 19 | Coolant pump |
