Auxiliary Radiator (Supercharger Vehicles Only)

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

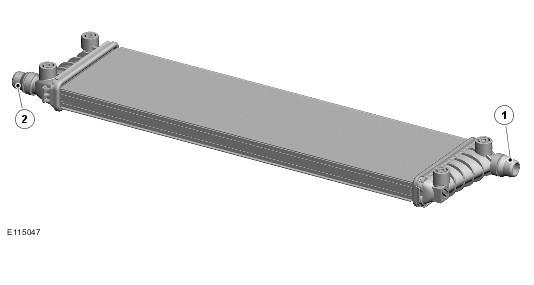

GJ0025512Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Outlet hose connection
2 Inlet hose connection

The auxiliary radiator is connected in parallel with the (main) radiator to increase the engine cooling capacity on supercharger (SC) vehicles. The auxiliary radiator is mounted horizontally in an air deflector attached to the front of the charge air radiator. The two end tanks of the auxiliary radiator incorporate connections for the supply and return hoses that connect it to the main radiator.
