Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|

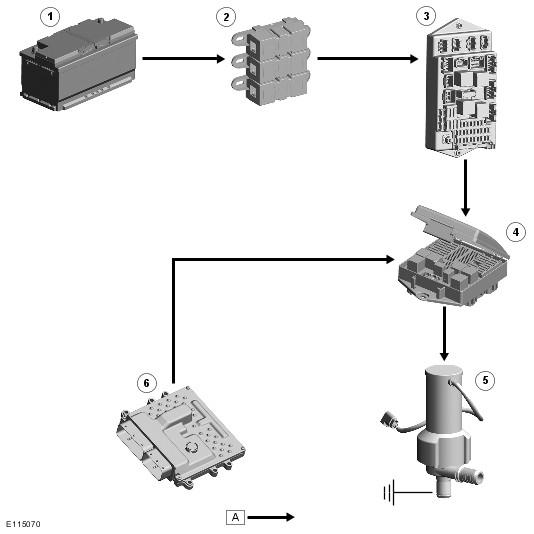

| Item Number |
Description |
| 1 |
Battery |
| 2 |
BJB (battery junction box) (175 A megafuse) |
| 3 |
CJB (central junction box) |
| 4 |
Power distribution box (intercooler water pump relay and fuse 24) |
| 5 |
Charge air coolant pump |
| 6 |
ECM (engine control module) |
NOTE:
A = Hardwired
