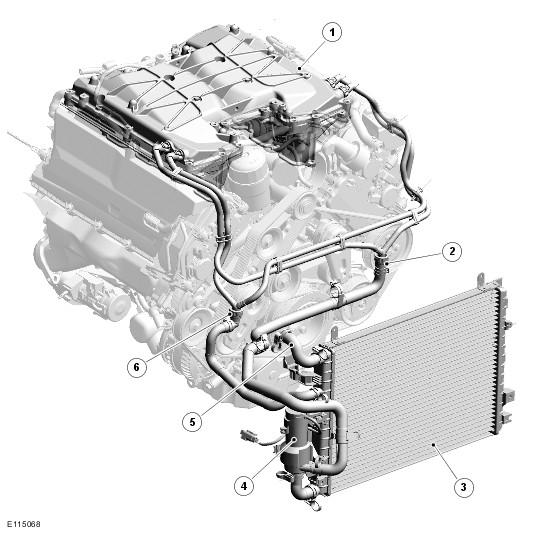

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Intake manifold assemblies |
| 2 |
Supply hoses to charge air coolers |
| 3 |
Charge air radiator |
| 4 |
Charge air coolant pump |
| 5 |
Engine cooling system connecting hose |
| 6 |
Return hoses from charge air coolers |
