Charge Air Radiator
WARNING: This page is about a different car, the 2011 Jaguar XKR and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

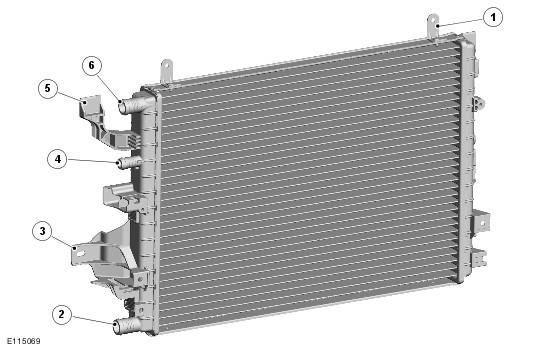

| Item Number | Description |
|---|---|
| 1 | Pipe clip bracket (2 off) |
| 2 | Coolant outlet connection |
| 3 | Lower attachment bracket (2 off) |
| 4 | Coolant inlet connection |
| 5 | Upper attachment bracket (2 off) |
| 6 | Expansion hose connection (with engine cooling system) |
The charge air radiator is a cross flow type with an aluminum core and plastic end tanks. The charge air radiator is installed in the cooling module, in front of the air conditioning (A/C) condenser. Brackets on the end tanks attach the charge air radiator to the front of the engine cooling system radiator.
The right-hand (RH) end tank incorporates the coolant inlet and outlet connections, and a connection for the hose to the engine cooling system. Hoses connect the inlet of the charge air radiator to the charge air coolers, and the outlet to the charge air coolant pump.
