Front Muffler: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Refer to Rear Muffler .
  3. Torque: 25 Nm
    GJ0025333
  4. See figure
    GJ0025334
  5. Torque: 50 Nm
    GJ0025335
    6. NOTE: This step requires the aid of another technician.

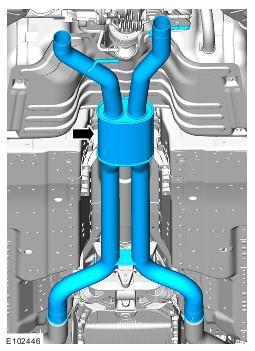

  6. See figure
    GJ0025357
