Control Diagram (Supercharger Vehicles Only)

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A  = Hardwired

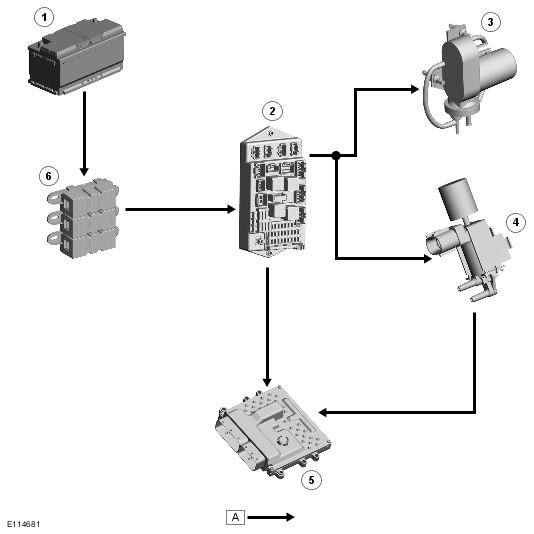

GJ0025553Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Battery
2 BJB (battery junction box) (175 A megafuse)
3 AJB (auxiliary junction box)
4 Vacuum pump
5 Solenoid valve
6 ECM
