Component Location - Naturally Aspirated Vehicles

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

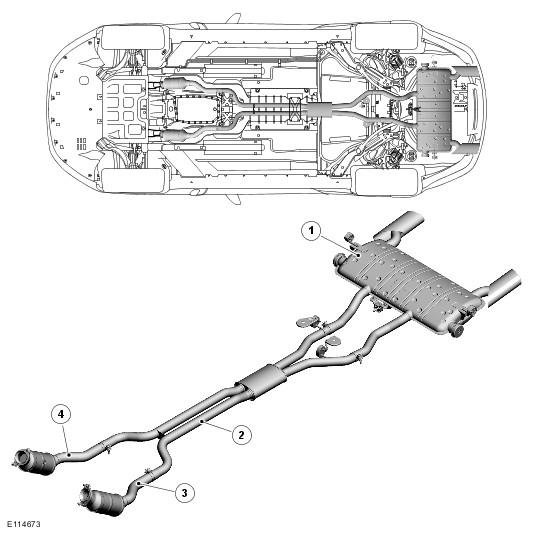

GJ0025545Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Rear section
2 Center section
3 LH (left hand) front section
4 RH (right hand) front section
