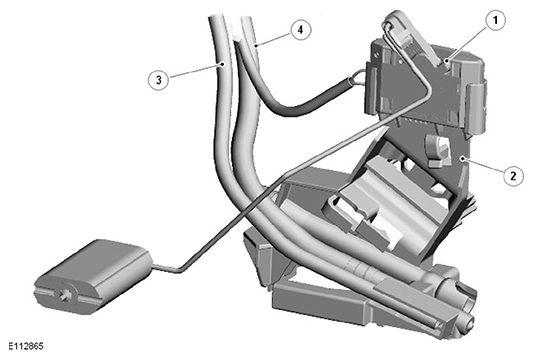

Remote Pump Housing
| ITEM | DESCRIPTION |
|---|---|
| 1 | LH fuel level sensor |
| 2 | Remote pump housing |
| 3 | Pipe (from LH drain connector on mounting flange) |
| 4 | Pipe (to jet pump on pump module) |
The remote pump housing is where fuel from the LH side of the fuel tank is drawn from to fill the swirl pot in the pump module. The remote pump housing is installed on the front face of the LH rear baffle. Clips integrated into the remote pump housing hold the LH fuel level sensor and the pipe from the LH drain connector on the mounting flange.
