Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  2. Raise and support the vehicle.

  3. Refer to: Fuel Tank Removal And Installation Fuel Tank - 5.0L (310-01A, Removal and Installation).

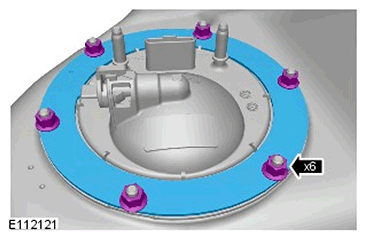

  4. G11545080

    Torque Specification: 10 Nm

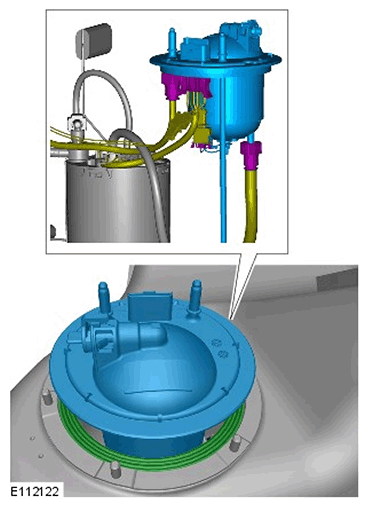

  5. G11545081

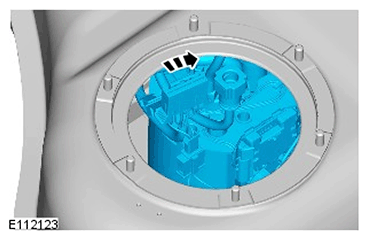

  6. G11545082

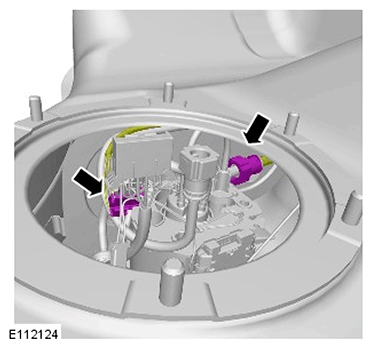

  7. G11545083
    8. CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.

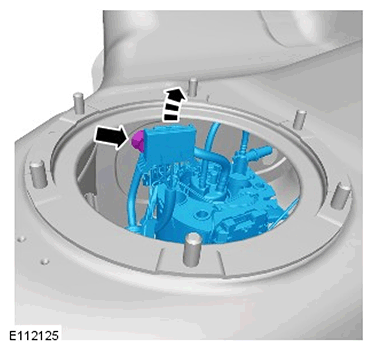

  8. G11545084
