Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Refer to: Fuel Pump and Sender Unit - 5.0L

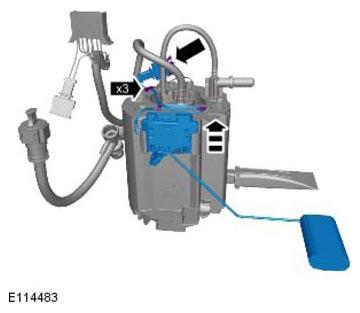

  3. G11292673
