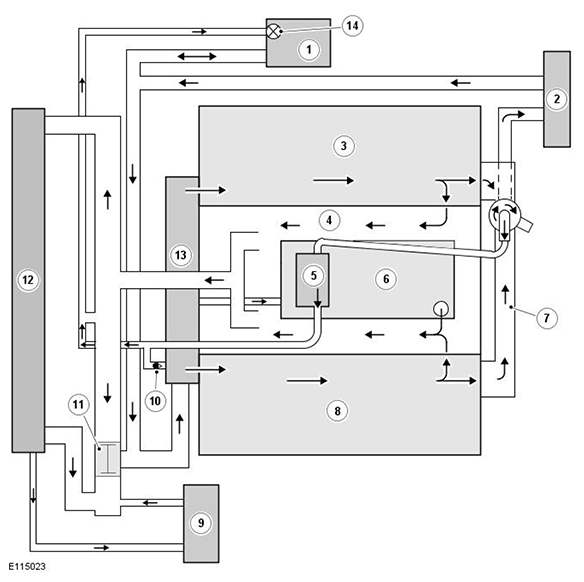

Engine Cooling Flow Diagram - Naturally Aspirated Vehicles

G11541244
ITEM DESCRIPTION
1 Expansion tank
2 Heater core
3 RH cylinder head
4 Cylinder block
5 Throttle
6 Engine oil cooler
7 Heater manifold
8 LH cylinder head
9 Transmission fluid cooler
10 Check valve
11 Thermostat
12 Radiator
13 Coolant pump
14 Bleed screw
