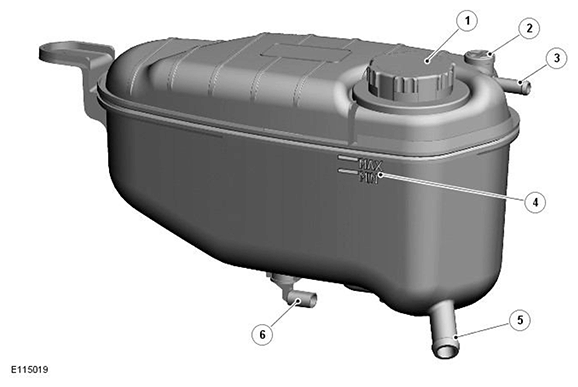

Expansion Tank
| ITEM | DESCRIPTION |
|---|---|
| 1 | Filler cap |
| 2 | Bleed screw |
| 3 | Vent hose connection |
| 4 | Level markings |
| 5 | Expansion hose connection |
| 6 | Level sensor |
The expansion tank is installed on the RH side of the engine compartment, immediately behind the suspension turret. A filler cap, bleed screw and level sensor are incorporated into the expansion tank. MAX and MIN level markings are molded onto the exterior of the tank.
The expansion tank provides the following functions:
- Service fill.
- Coolant expansion during warm-up.
- Air separation during operation.
- System pressurization by the filler cap.
The expansion tank has an air space of approximately 0.5 liter (1.06 US pints), above the MAX level, to allow for coolant expansion.
