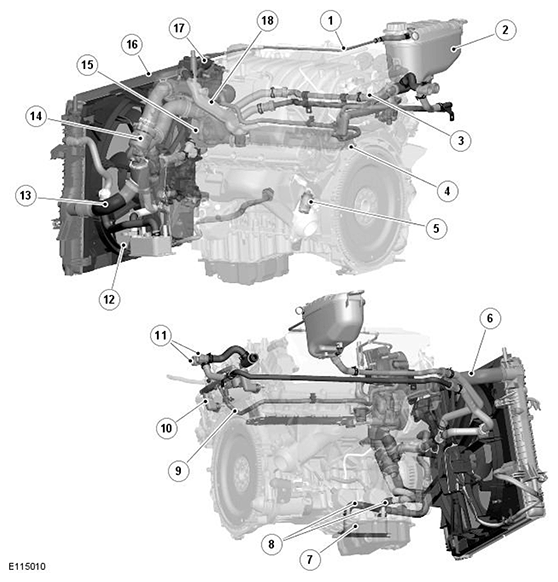

Component Location - Naturally Aspirated Vehicles
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine vent hose |
| 2 | Coolant expansion tank |
| 3 | Coolant supply/expansion hose |
| 4 | Engine oil cooler |
| 5 | Engine block heater (110 V version shown) or drain plug |
| 6 | Radiator upper hose |
| 7 | Transmission fluid cooler |
| 8 | Transmission fluid cooler supply and return hoses |
| 9 | Throttle body heater hose |
| 10 | Heater manifold |
| 11 | Heater core supply and return hoses |
| 12 | Cooling fan |
| 13 | Radiator lower hose |
| 14 | Thermostat |
| 15 | Coolant pump |
| 16 | Radiator |
| 17 | Throttle |
| 18 | Outlet tube |
