Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Cooling System Partial Draining and Vacuum Filling  (General Procedures).
  2. Refer to: Radiator Splash Shield (Front End Body Panels, Removal And Installation).

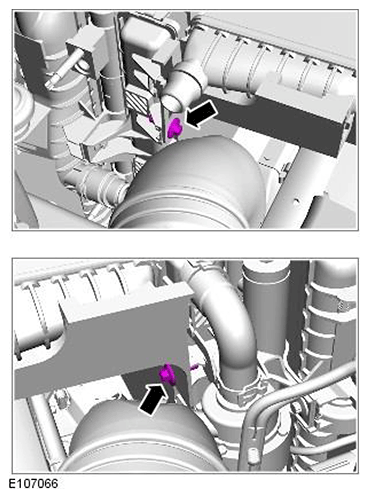

  3. G11541322

    Torque Specification: 7 Nm

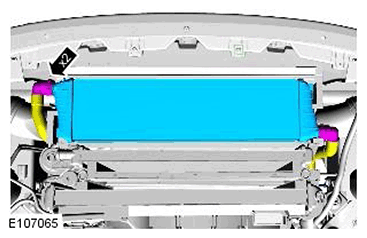

  4. G11541323

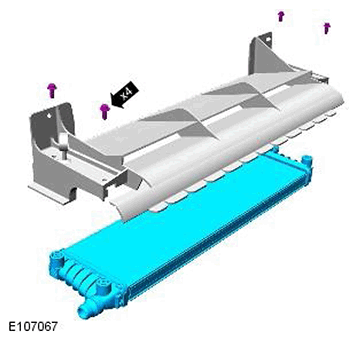

  5. G11541324

Torque Specification: 7 Nm
