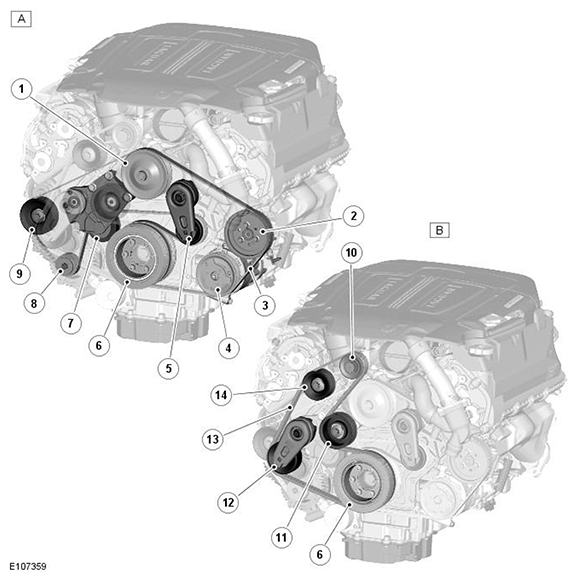

Component Location (Supercharged Vehicles)
| ITEM | DESCRIPTION |
|---|---|
| A | Primary accessory drive |
| B | Secondary accessory drive |
| 1 | Coolant pump |
| 2 | Power steering pump |
| 3 | Primary drive belt |
| 4 | A/C compressor |
| 5 | Belt tensioner |
| 6 | Crankshaft pulley/torsional vibration damper |
| 7 | Idler pulley |
| 8 | Generator |
| 9 | Idler pulley |
| 10 | Supercharger |
| 11 | Idler pulley |
| 12 | Belt tensioner |
| 13 | Secondary drive belt |
| 14 | Idler pulley |
