Component Location (Naturally Aspirated Vehicles)

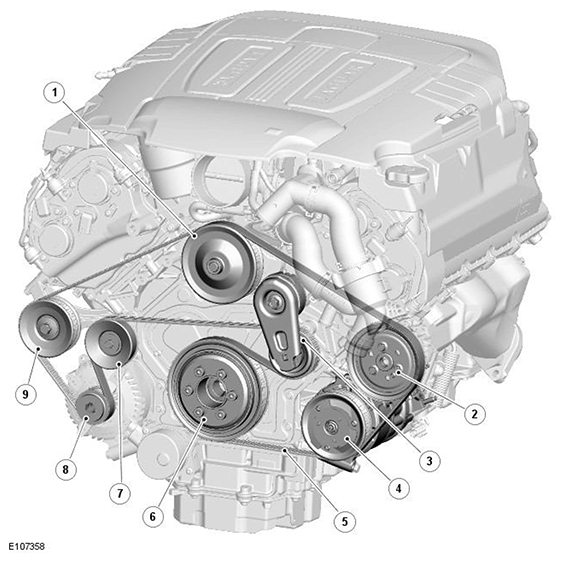

G11541863
ITEM DESCRIPTION
1 Coolant pump
2 Power steering pump
3 Belt tensioner
4 A/C (air conditioning) compressor
5 Primary drive belt
6 Crankshaft pulley/torsional vibration damper
7 Idler pulley
8 Generator
9 Idler pulley
