Parking Brake Control Module

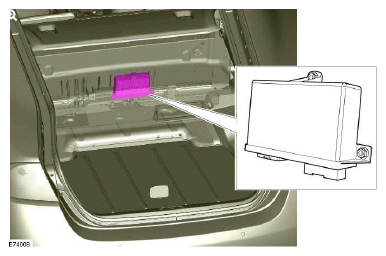

The parking brake control module is mounted behind the auxiliary junction box and is connected to the vehicles electrical wiring by two mulitplugs. The control module is also connected to the high speed CAN (controller area network) bus, allowing it to communicate with other vehicle systems.

The control module monitors the condition of the parking brake switch through a series of hardwired electrical connections and controls operation of the parking brake actuator accordingly.
