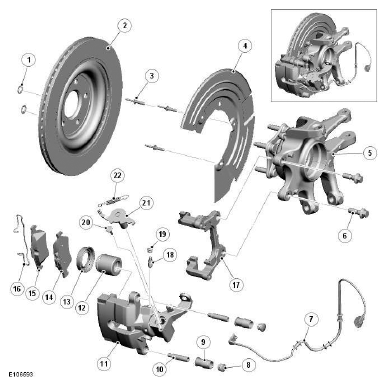

Component Location
NOTE:
RH (right-hand) SC (supercharger) vehicle installation shown, other installations similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Retaining washer (2 off) |
| 2 | Brake disc |
| 3 | Rivet (3 off) |
| 4 | Dust shield |
| 5 | Rear wheel knuckle/hub and bearing assembly |
| 6 | Caliper bolt (2 off) |
| 7 | Brake pad wear sensor |
| 8 | Guide pin dust cover (2 off) |
| 9 | Guide pin bush (2 off) |
| 10 | Guide pin (2 off) |
| 11 | Caliper body |
| 12 | Piston |
| 13 | Piston dust cover and seal |
| 14 | Inboard brake pad |
| 15 | Outboard brake pad |
| 16 | Anti-rattle spring |
| 17 | Caliper carrier |
| 18 | Bleed screw |
| 19 | Bleed screw dust cap |
| 20 | Knurled pin |
| 21 | Handbrake actuation lever |
| 22 | Tension spring |
