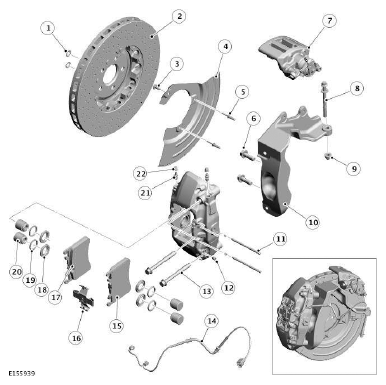

Component Location
NOTE:
RH (right-hand) SC (supercharger) vehicle installation shown, other installations similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake disc retaining clip (2 off) |
| 2 | Carbon ceramic disc |
| 3 | Bolt |
| 4 | Dust shield |
| 5 | Rivet (2 off) |
| 6 | Caliper carrier bolt (2 off) |
| 7 | Park Brake caliper |
| 8 | Toe link bolt |
| 9 | Toe link nut |
| 10 | Caliper carrier |
| 11 | Brake pad retaining pins (2 off) |
| 12 | Blanking plug |
| 13 | Caliper bolt (2 off) |
| 14 | Brake pad wear sensor |
| 15 | Inboard brake pad |
| 16 | Brake pad retainer |
| 17 | Outboard brake pad |
| 18 | Piston dust cover (4 off) |
| 19 | Piston seal (4 off) |
| 20 | Piston (4 off) |
