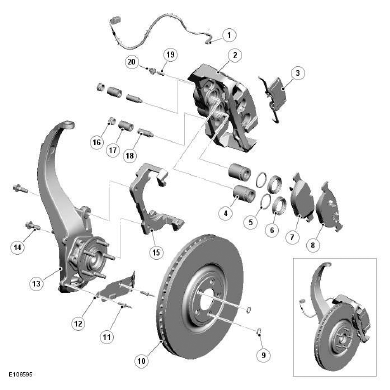

Component Location - Supercharger Vehicles
NOTE:
LH installation shown, RH installation similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake pad wear sensor |
| 2 | Caliper body |
| 3 | Anti-rattle spring |
| 4 | Piston (2 off) |
| 5 | Piston seal (2 off) |
| 6 | Piston dust cover (2 off) |
| 7 | Inboard brake pad |
| 8 | Outboard brake pad |
| 9 | Retaining washer (2 off) |
| 10 | Brake disc |
| 11 | Rivet (2 off) |
| 12 | Heat shield |
| 13 | Front wheel knuckle/hub and bearing assembly |
| 14 | Caliper bolt (2 off) |
| 15 | Caliper carrier |
| 16 | Guide pin dust cover (2 off) |
| 17 | Guide pin bush (2 off) |
| 18 | Guide pin (2 off) |
| 19 | Bleed screw |
| 20 | Bleed screw dust cap |
