Removal And Installation: Removal

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Wheel and Tire (Removal and Installation).
  3. G11284385

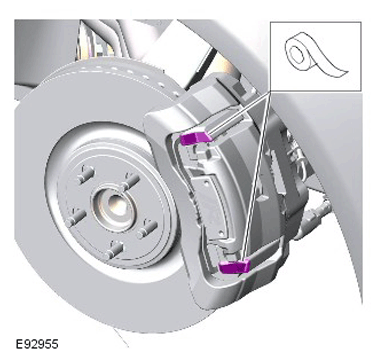

  4. NOTE: Left-hand shown, right-hand similar.
    G11284387

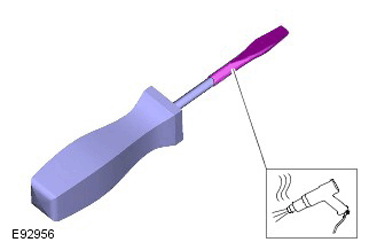

  5. G11284388
  6. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.
    NOTE: Left-hand shown, right-hand similar.
    G11284389
    • Lever the anti-rattle spring in the center of the spring until either side is released.
  7. WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.
    CAUTION: Do not allow the brake caliper to hang on the brake hose.
    NOTE: Left-hand shown, right-hand similar.
    G11284390
  8. NOTE: Left-hand shown, right-hand similar.
    G11284391
    • Release the clip.
  9. NOTE: Left-hand shown, right-hand similar.
    G11284392
  10. G11284426
  11. Repeat the above procedure on the opposite side.
